Dumpster Enclosure

Dumpster Enclosure

$99.99
$99.99
Sale Sold out

Dumpster Enclosure Plans designed for fast, confident construction. Download permit‑ready drawings with clear dimensions, structural notes, and wood dumpster enclosure details—ideal for building a durable, attractive commercial dumpster screen that meets code and site requirements.

What’s Included?

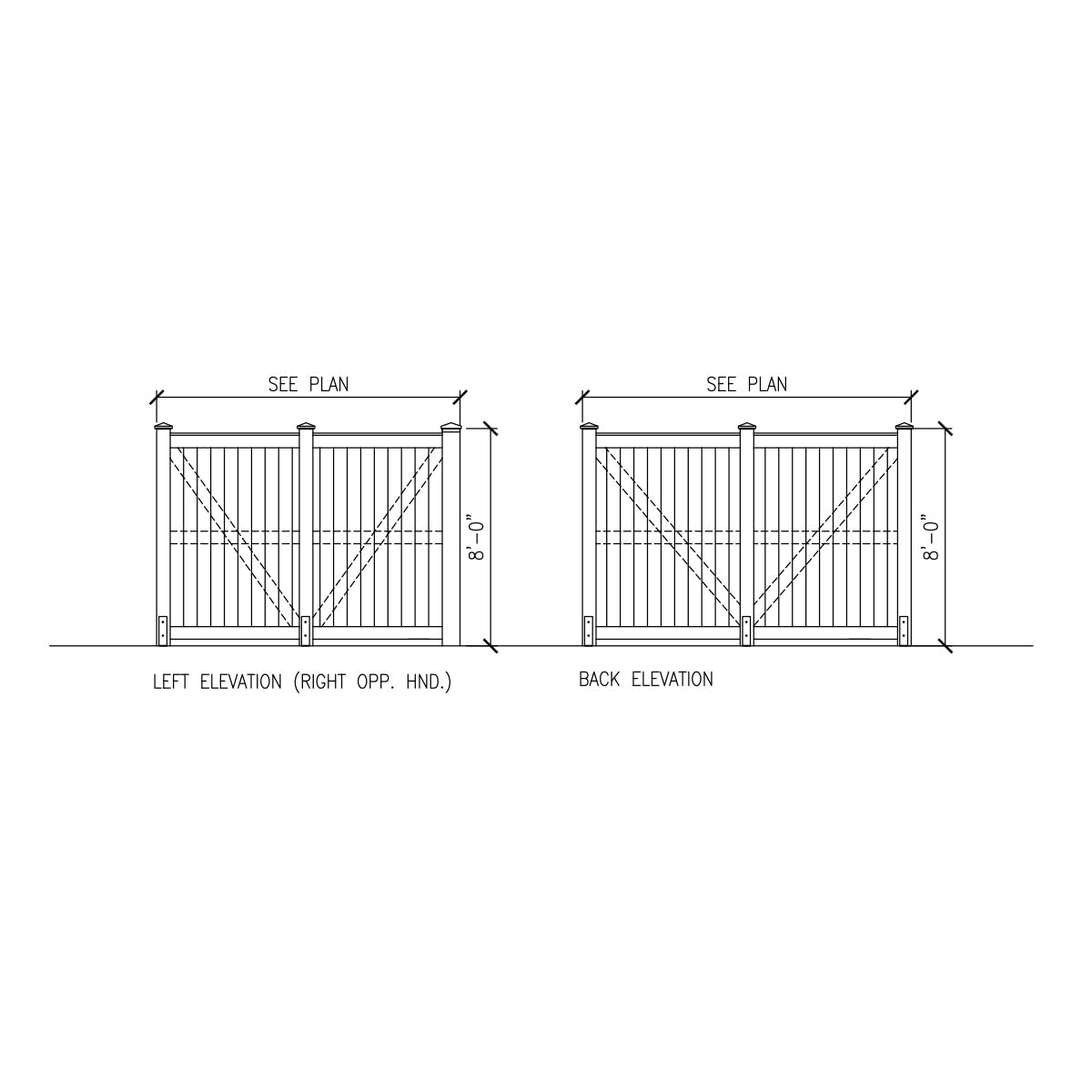

    • Fully dimensioned plan, elevation, and detail drawings
    • Dumpster gate details with heavy-duty hardware specifications
    • Structural foundation and footing details
    • Material callouts for treated wood, fasteners, and finishes
    • Concrete slab-on-grade and reinforcement requirements
    • Design load criteria and code references
    • General construction and foundation notes
Design Overview
    • Wood screen enclosure with vertical and horizontal treated wood planks
    • Heavy-duty hinged access gates with slide bolts and lockable hasp
    • Treated wood posts embedded in concrete footings
    • Optional steel bollards for vehicle protection
    • Clean, modern appearance suitable for retail, office, and mixed-use sites
Key Specifications
    • Designed for a standard commercial dumpster
    • Approximate enclosure height: up to 8'-0"
    • Reinforced 4" concrete slab-on-grade
    • Hot-dipped galvanized fasteners and hardware
    • Pressure-treated Southern Yellow Pine lumber
    • Exterior-grade construction throughout
Code Compliance

Plans reference widely adopted standards, including:

  • International Building Code (IBC)
  • ASCE 7 Minimum Design Loads
  • ACI Concrete Design Standards
  • ANSI / NDS Wood Construction Standards

(Local jurisdiction requirements should always be verified prior to construction.)

  • Delivered as a PDF digital download
  • Instant access after purchase
